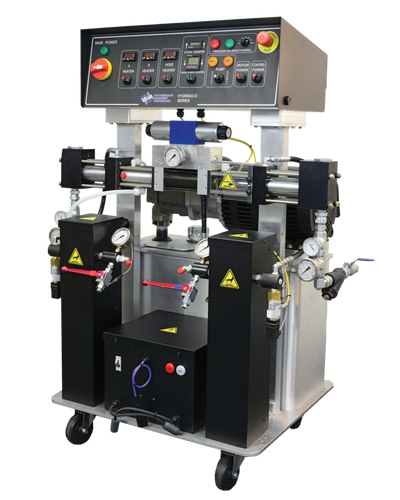

PMC PH-25 Spray Foam Proportioner
Model PH-25 2000 psi (138 bar)
Ideal for Residential Foam Insulation Applications
Includes Pressure Balance Control System, Inlet Monitoring and Count Down Shutoff
Preferred machine for the professional Spray foam applicator
Output
28 lbs/min (12.70 kg/min)
Max Working Pressure
2,000 psi (138 bar)
Max Hose Length
210 ft (64 m) w/70V Trans
310 ft (94.5 m) w/90V Trans
410 ft (121.9 m) w/120V Trans
Heater Wattage
7,500 watts Total (Single htr)
9,000 watts Total (Single htr)
10,500 watts Total (Single htr)
14,000 watts Total (Single htr)
Hose Heating Power
70 Volt,
90 Volt or
120 Volt
Max Fluid Temperature
190 °F (87.7 °C)
Dimensions
44”w x 22”d x 54”h (111 cm x 55 cm x 137 cm)
Weight
415 lbs (188 kg)
