Spray foam Proportioners and Parts

          Click to purchase and Learn More

Brand new PH-2 is ready to ship out

We received a new PH-2 ready to ship. If you're growing and ready to add a new machine, This is what you want.

Specs:

Part number #105435

PH2,3HP,

220V single Phase

90T,14KW Heaters

           Click to Purchase & Learn More

      Polyurethane Machinery Corporation

• 3 Horse Power
• Hydraulic machine
• Output: 25 lbs/min
• Up to 3,000 psi
• Max Hose Length: 310 ft of hose
• Max Fluid Temp: 190F
• Hose Heating Power: 90V

           Click to Purchase & Learn More

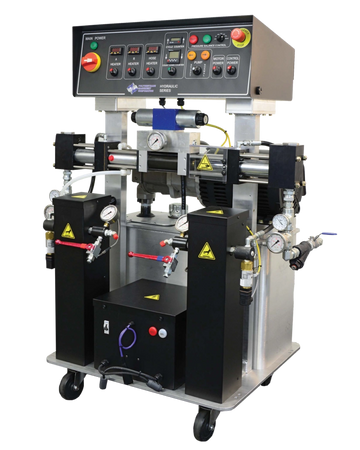

The PHX-25 Residential Foam Proportioner is a slightly scaled-down version of the PHX-40, sharing the same technological advancements, but having somewhat less capacity. The max output for this residential spray foam proportioner is 1.9 gpm, as opposed to the 2.8 gpm the PMX-40 puts out. Max pressure is 3000 psi, compared to 3500 psi,

          Click to purchase and Learn More

PHX-40   3500 psi (241 Bar) – Ideal for use in High Output Plural Component Coatings Applications

Call to choose your units options:

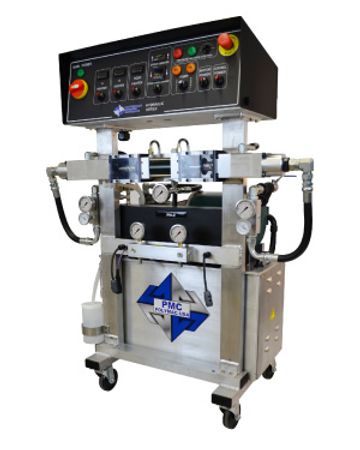

In an effort to provide the best, most efficient equipment used in the foam and coatings spray industry, we're now offering the PMX-40 Proportioner 3000psi 2.5gpm at a significantly discounted price. This PMC Classic Hydraulic Proportioner is manufactured by industry-leading Polyurethane Machinery Corporation

                Call for purchase information

MODEL   PHX-55

Output     3.25 gal min (13.3 liters/min)

Max Working Pressure   3500 psi (241 bar)

Max Hose Length    410 ft (121.9 m)

Heater Wattage     21,000 watts (Total)

Hose Heating Power    120 volts

Max Fluid Temperature    190 °F (87.7 °C)

Weight (w/o Hydraulic Fluid)  655 lbs

Electrical @ 21KW Heaters   95 amps @ 3 x 230V

                Call for purchase information

MODEL   Premier

Output    40 lbs/min (18.14 kg/min)

Max Working Pressure   2,000 psi (138 bar)

Max Hose Length    410 ft (121.9 m)

Heater Wattage   18,000 watts Total (Dual htr)

Hose Heating Power    120 Volts

Max Fluid Temperature    190 F (87.7 C)

Main Voltage    208-240VAC Single Phase 134A–18,000W heaters

Main Voltage   208-240VAC Three Phase 88A-18,000W heaters

Dimensions
30in x 40in x 55in (76cm x 102cm x 140cm)

                            Click here to purchase

Chamber, 01 w/Drills, DP

Part # GU-814-DP-01

                         Click here to purchase

Chamber, 01.5 w/Drills, DP

Part # GU-814-DP-01X

                        Click here to purchase

Chamber/PCT Kit 0.5 w/Drill, DP

Part # KT-814-DP-00X
